Mounting Solar Panels on RV: A Complete Guide to Off-Grid Freedom

Imagine waking up to the sound of birds chirping in your ears instead of the disturbing roar of the generator. The morning light breaks the horizon and gently floods the room. At this time, your electronic devices are quietly charging, the refrigerator in the corner of the gentle humming sound, the fan also leisurely rotating – and all of this beauty, all from that pure, peaceful solar energy. Doesn’t it make you feel that life is instantly a little more cozy and serene? If that sounds like your kind of RV lifestyle, then mounting solar panels on RV might just be your next big upgrade.

Whether you’re an adventurer who dares to take a weekend drive or a seasoned traveler, mounting solar panels on your rv can truly open the door to the free world. This guide acts as your personal assistant, taking you from choosing the right panel equipment, through the actual installation step-by-step, and explaining what you need to know in a clear manner.

Why Add Solar Panels to Your RV?

Not only is rv solar panel installation in your RV life stylish, but it’s also practical. Here are the reasons why many RVers choose it:

• Freedom from shore power: Go boondocking in the wild without hunting for hookups.
• Save money over time: Reduce or eliminate campground electric fees.
• Quiet and clean energy: Say goodbye to smelly gas generators and hello to silent power.
• Better battery life: The solar panel keeps your battery fully charged and healthy.

In short, RV solar panel installation gives you independence and peace of mind on the road.

Choosing the Right Solar Setup for Your RV

When mounting solar panels on your rv, picking the right system to begin with can save you a lot of trouble down the road. It’s not one of those things where one set of plans will take care of every situation; how your RV solar system is set up depends on your travel habits, how much electricity you normally use, how much room there is in the car for it, and how much money you’re prepared to spend.

So, before you rush out to drill holes in your car or rip off those adhesive backing strips, let’s take a good look at the key components in a smart RV solar system. Once you’ve got that figured out, you’ll be more comfortable installing it, and you’ll be more comfortable using it in the future.

Types of Solar Panels for RVs

The first decision in mounting solar panels on rv is to select the kind of solar panels to be used. Most RV owners will choose either monocrystalline or polycrystalline panels. Monocrystalline panels are sleek, glossy black, and efficient at generating electricity even in low light conditions, making them ideal for those looking to maximize energy output in a smaller space. Polycrystalline panels, on the other hand, are usually less expensive but also slightly less efficient.

When mounting solar panels on your rv, you also need to consider the physical design of the panels. Rigid solar panels are the most durable and are usually installed directly on the roof of the rv. They are made with an aluminum frame and tempered glass, making them ideal for permanent installation. Flexible panels may be more fitting if your RV roof is curved or space is limited. They are lighter in weight, fit on uneven surfaces, and don’t require much mounting hardware – perfect for a hidden, low-profile installation.

Choosing the right option when it comes to rv solar panel installation requires a lot of thought. You have to consider what kind of roads you are driving on. If the road is potholed, the solar panels will need to be strong enough or they will come loose after a few bumps, so durability is absolutely key. Additionally, you need to determine how often you need to remove and install the panels. If you like to move around and are looking for convenience, then folding or suitcase solar panels may be more considerate and easier to carry.

Essential Components of an RV Solar System

Let’s break down the building blocks of a full solar setup for mounting solar panels on RV. Even if you’re just adding solar panels to your RV for some light boondocking, you’ll need more than just panels.

• Solar panels – These collect sunlight and convert it into electricity.
• Charge controller – This protects your battery from overcharging by regulating the current coming from the panels. MPPT controllers are pricier but far more efficient than PWM models.
• Inverter – If you plan on powering AC appliances (think laptops, coffee makers, or TVs), you’ll need an inverter to convert your system’s DC power into usable AC.
• Battery bank – The heart of your RV’s off-grid power. Deep-cycle batteries (AGM, lithium, or gel) store your solar energy for nighttime or cloudy-day use.
• Cables and connectors – Don’t underestimate the importance of proper wiring. Undersized or poor-quality cables can lead to voltage drops and inefficiencies.

A common rookie mistake during mounting solar panels on RV is focusing too much on panel wattage and ignoring the rest of the system. It’s like picking a race car engine without thinking about whether the transmission and fuel lines go together. For an RV solar system to run safely and efficiently, all the components have to work together properly, and that’s what a truly balanced setup is all about.

Calculating Your RV’s Power Needs

Now for the big question: how much solar do you actually need?

This step is essential before RV solar panel installation begins. Start by listing out all the devices you regularly use—lights, fridge, water pump, fan, chargers, microwave, etc.—and figure out their wattage and usage hours per day. Multiply those numbers to estimate your daily energy consumption in watt-hours.

Let’s say you use 3,000Wh per day. If you install 300-watt solar panels and you get around 5 hours of peak sun per day, that’s 1,500Wh from one panel. You’d need at least two of those panels, and maybe a third for cloudy days or extra buffer.

Also factor in your battery size. There’s no point mounting solar panels on RV roofs that can pump in more power than your batteries can hold. Oversized panels with too-small batteries will waste energy, while undersized panels will leave you underpowered.

You can find calculators online, but real-world conditions (like shading, heat, and panel angle) affect output. Always overestimate a bit to stay safe, especially if you’ll be off-grid for days at a time.

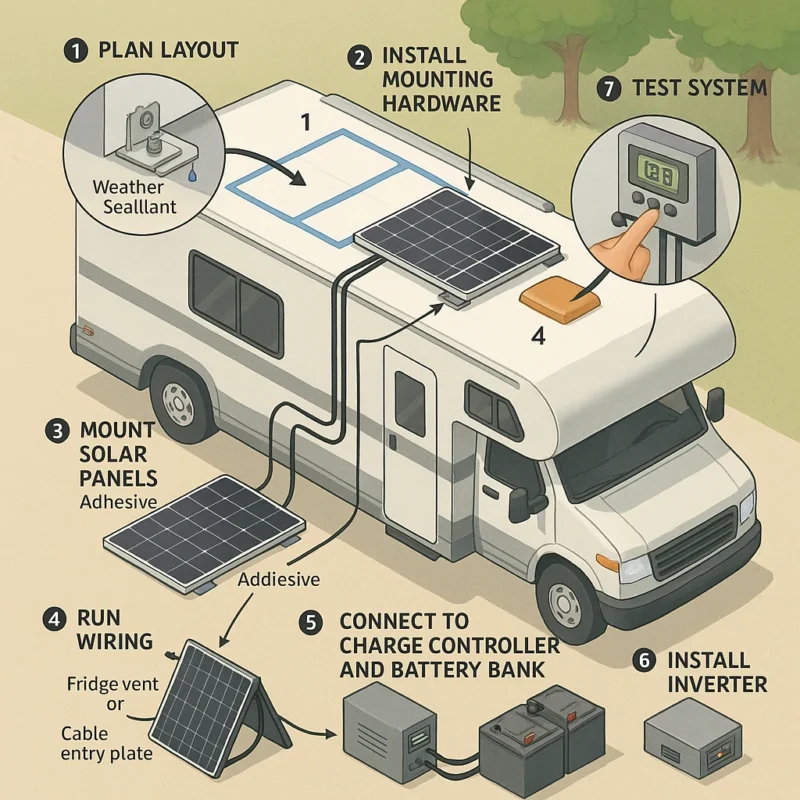

How to Install Solar Panels on RV: Step-by-Step

Now that you’ve done your homework and picked out your panels, you’re ready to start mounting solar panels on your rv. Whether you’re a year-round wanderer on the road or a player who only travels occasionally on weekends, putting solar panels on your RV is definitely a great way to enhance your travel experience. At first glance, this project seems quite intimidating, but in fact, as long as you have a few things in mind and the right stuff in hand, it’s no problem at all to do it yourself.

Now that you’ve done your homework and picked out your panels, you’re ready to start mounting solar panels on your rv. No matter if you’re a full-time traveler or a weekend getaway, mounting solar panels on your rv is one of the most impactful upgrades you can make to your car. At first glance, this project seems quite intimidating, but in fact, as long as you have a few things in mind and the right stuff in hand, it’s no problem at all to do it yourself.

The following is a practical, concise, step-by-step guideline on how to do a rv solar panel installation on the roof of your RV and how to properly connect all the components.

Step 1: Plan Your Layout and Measure Twice

Before you touch a drill or unbox your panels, get on the roof and visualize your layout for mounting solar panels on RV. Consider where your panels will get the most sun exposure throughout the day. Try to avoid areas shaded by A/C units, antennas, or vents.

Measure and plan the wiring path carefully. If your system has several panels, don’t forget to leave some space between them. This allows for smooth airflow and makes cleaning much easier. Planning ahead will save you a world of headache later during your RV solar panel installation.

Pro tip: Use painter’s tape to outline the position of each panel – a simple trick to help you spot potential layout problems before they become actual problems.

Step 2: Install the Mounting Hardware or Adhesive Base

Next, we need to get the solar panels securely mounted on the roof of the car. If you go with a rigid panel, which most people do, you’ll want to use a Z-bracket, angle bracket, or tilt bracket. Most kits come with stainless steel hardware, but don’t forget a little weather sealant, like Dicor or lap sealant, to seal around the screws so the rain can’t get in.

If your RV roof can’t be drilled—or you’d simply rather avoid it—there are adhesive options like 3M VHB tape or specialized mounting bases for how to install solar panels on RV roofs without puncturing the surface. These work especially well for lightweight or flexible panels, but only when paired with strong surface prep and proper bonding agents.

Clean the surface thoroughly before applying the adhesive. Dust, grease, and even a little moisture can weaken the bond.

Step 3: Mount the Solar Panels

Once your mounting hardware is secured, it’s time to place the panels. Make sure everything lines up with your taped plan. If you’re using bolts, don’t overtighten—just enough to hold things firm without cracking the panel frame.

For adhesive installs, press firmly and apply even pressure. Give the adhesive the recommended cure time before driving the RV or exposing it to rain.

Keep in mind, this is one of the most permanent parts of the RV solar panel installation process, so double-check your placement before finalizing.

Step 4: Run the Wiring to the Charge Controller

Next, you’ll need to run the cables from your panels into the RV’s interior, where your charge controller will live. The cleanest method is to route the wires through the fridge vent or a cable entry plate (which can be sealed watertight).

Be sure to use UV-resistant wire rated for outdoor use and protect it with conduit or wire loom if it’s exposed to the elements. Label your positive and negative lines to avoid mix-ups later.

This part may take the most patience, especially if your RV has tight wall spaces, but clean wiring is safer and easier to troubleshoot down the line.

Step 5: Connect the Charge Controller to the Battery Bank

Your solar panels feed DC power into the charge controller, which regulates voltage and keeps your batteries from overcharging. Most systems will require either an MPPT or PWM charge controller—MPPT is more efficient, especially for larger arrays.

Connect your panel wires to the controller first, then wire the controller to your battery bank. Always connect the battery side last to prevent accidental shorts or spikes.

Check manufacturer instructions carefully—hooking things up in the wrong order is one of the top causes of blown fuses or damaged gear when adding solar panels to RV systems.

Step 6: Install and Wire the Inverter (If Needed)

If you want to power standard 120V appliances—coffee makers, laptops, blenders—you’ll need an inverter as part of your mounting solar panels on RV setup. Pure sine wave inverters are ideal for sensitive electronics, while modified sine wave inverters are cheaper but more limited.
Mount the inverter near your battery bank to minimize voltage loss. Use thick-gauge wires and add fuses or circuit breakers for safety. Some RVs come pre-wired for an inverter hookup; if yours doesn’t, you may want to consult an electrician for this step.

Step 7: Test the System and Monitor Performance

With everything connected, it’s time to test your system. Flip on the charge controller, check your battery voltage, and ensure your solar panels are producing power. A sunny day will help here—but even in partial light, you should see some activity.

Keep an eye on your controller’s readings over the first few days. Many modern units allow Bluetooth monitoring via smartphone, which is super handy while you’re figuring out how your new system behaves.

If anything seems off—like low voltage or no charging—double-check your wiring, polarity, and connections.

Installing solar panels on your RV might feel like a big project, but it’s one of those upgrades that pays off every time you camp off-grid. It’s the kind of independence that makes the extra effort 100% worth it.

And don’t worry if your first system isn’t perfect—you can always expand later. The beauty of mounting solar panels on RV roofs is that it’s totally modular. Start small, build as you go, and enjoy the quiet satisfaction of powering your adventures with pure sunshine.

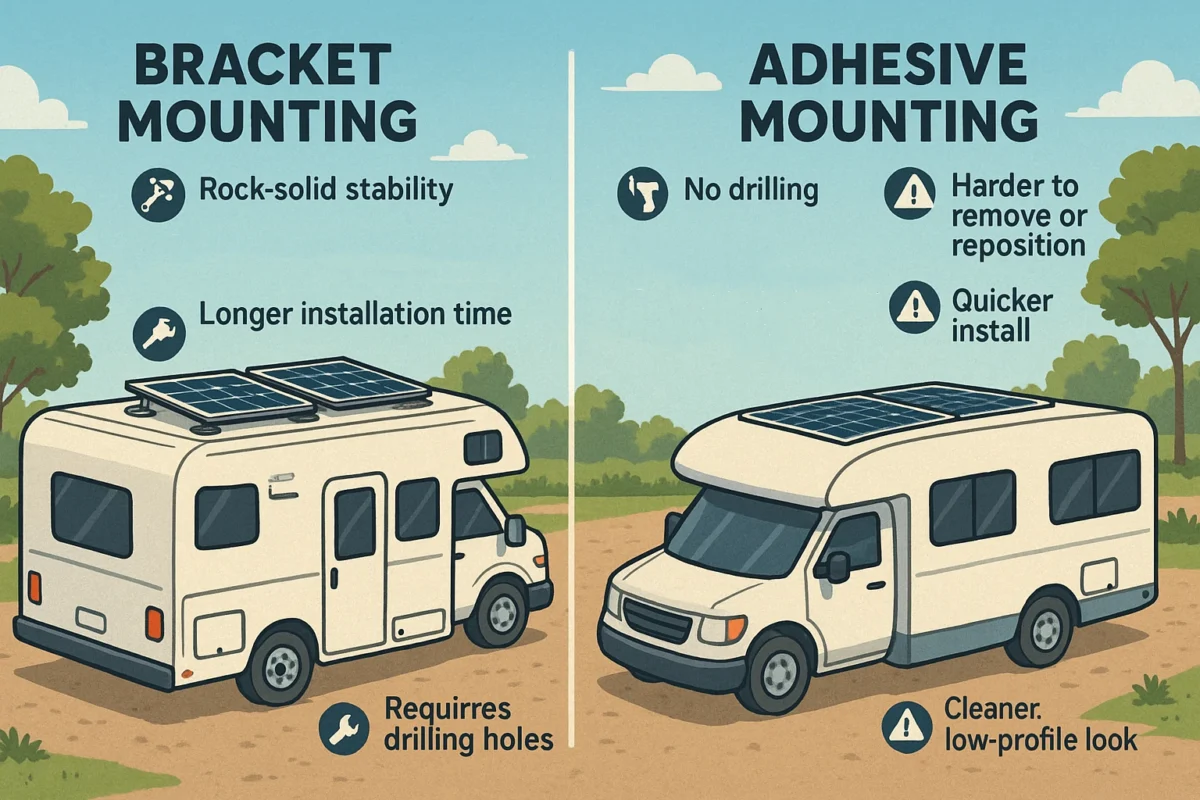

Mounting Options: Adhesive vs. Brackets

When it comes to mounting solar panels on RV, one of the first practical choices you’ll face is how exactly you’re going to attach the panels to your rig. Should you go with heavy-duty adhesive or traditional metal brackets? The short answer: it depends on your RV type, the panel style, and how permanent you want the installation to be. Let’s break down both options so you can make the best call for your specific setup.

Using Brackets: The Classic, Secure Method

Brackets—especially Z-brackets, L-brackets, or tilt mounts—are by far the most commonly used mounting method in traditional RV solar panel installation. They provide a solid mechanical connection between the solar panel and your RV’s roof, often using stainless steel bolts and screws.

This method does involve drilling into your roof, which understandably makes some RV owners a little nervous. But if done properly, with high-quality sealant and correct placement, it creates a long-lasting, weather-resistant hold that stands up to high winds and bumpy backroads.

Pros of bracket mounting:

• Rock-solid stability, even at highway speeds
• Works well with rigid, framed panels
• Ideal for long-term or full-time RVers
• Supports tilt brackets for improved winter charging

Nachteile:

• Requires drilling holes into your RV’s roof
• Longer installation time
• Needs regular checks to ensure bolts stay tight

If you’re serious about how to install solar panels on RV rooftops in a way that’s durable and safe, brackets are a tried-and-true solution.

Using Adhesive: Low-Profile and Drill-Free

Adhesive mounting has gained popularity, especially among vanlifers and RVers with fiberglass roofs or curved surfaces. Strong industrial adhesives like 3M VHB tape or specialized mounting pads make it possible to stick panels down without a single hole.

Flexible or semi-flexible panels are the go-to choice here, since they’re lighter and can mold to the shape of your RV roof. Some rigid panel kits even come with adhesive-compatible corner mounts that combine peel-and-stick convenience with a bit of extra structure.

Pros of adhesive mounting:

• No drilling—preserves roof integrity
• Cleaner, low-profile look
• Quicker install (especially for lightweight panels)
• Perfect for stealthy setups or renters

Nachteile:

• Not suitable for heavy or large panels
• Can fail if not applied correctly or on dirty surfaces
• Harder to remove or reposition later
• May require additional bonding agent in hot climates

For weekend warriors or RV owners who are just adding solar panels to RV setups temporarily—or who lease their rig—adhesive might be the most non-invasive way to go. Just make sure you follow the product instructions closely and prep the surface well. Dust, grease, or even mild humidity can reduce adhesion strength dramatically.

Which Option is Right for You?

Here’s the deal: both methods can work beautifully when done correctly. If you’re mounting flexible panels on a curved Class B van roof and want to avoid holes at all costs, adhesive mounting is your best friend. But if you’re installing multiple 100W or 200W rigid panels on a flat RV roof and you’re in it for the long haul, brackets will offer more peace of mind.

Many RVers even combine both methods—using brackets for strength and a bit of adhesive for extra vibration dampening. It’s your setup, your road, your rules.

At the end of the day, RV solar panel installation isn’t just about slapping a few panels on your roof and calling it a day. The mounting method you choose plays a critical role in performance, safety, and longevity. So weigh your options carefully, and don’t cut corners—literally or figuratively.

Wiring Configurations: Series vs. Parallel

Wiring in Series

• Voltage adds up, amps stay the same
• Better for long wire runs and high-voltage controllers
• Downside: One shaded panel affects the whole array

Wiring in Parallel

• Voltage stays the same, amps add up
• Great for mixed-light conditions
• Downside: Thicker wires required

So, is it better to wire RV solar panels in series or parallel? It depends on your system size and layout, but many opt for a hybrid approach.

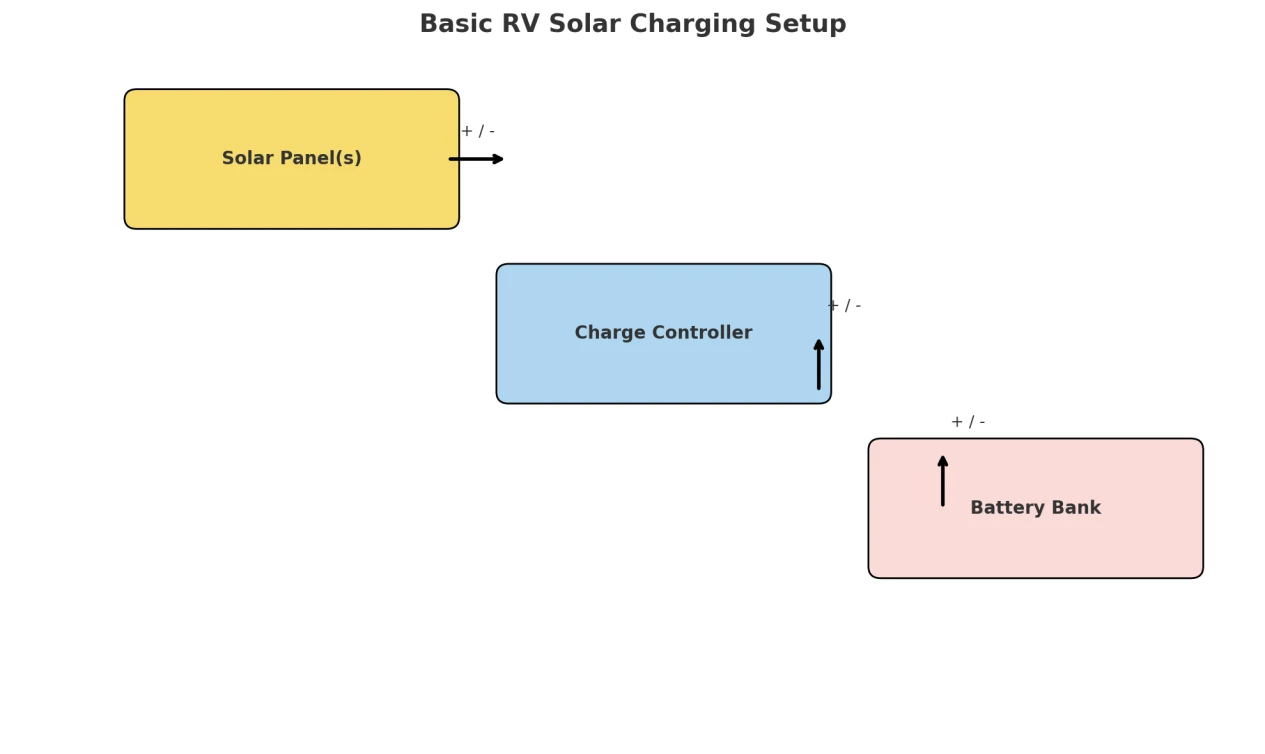

How Do You Hook Up Solar Panels to Charge an RV Battery?

Hooking up solar panels to charge your RV battery is one of the most essential steps in any RV solar panel installation. It might sound technical, but once you break it down, the process is actually pretty straightforward—even for beginners.

After mounting solar panels on your RV, you’ll run the positive and negative wires from the panels to a solar charge controller. This device is the brain of the system—it regulates the voltage and current from your panels to ensure your batteries charge safely without overloading.

From the charge controller, connect cables to your RV’s battery bank. Most setups use 12V or 24V deep cycle batteries, depending on your system size. Make sure to match polarities (positive to positive, negative to negative) and fuse the lines for protection.

If you’re wondering how to install solar panels on RV rooftops and wire them properly, remember this golden rule: battery connections always come last. It keeps you and your components safe during installation.

Whether you’re adding a single panel or upgrading to a full solar array, proper hookups make all the difference in getting reliable, off-grid power.

Can You Plug a Solar Panel Directly Into an RV?

Technically, yes—but it’s not the safest or most efficient way. Some portable panels come with an RV plug (like a cigarette lighter or SAE connector), allowing direct connection. While this can top off your battery slowly, it lacks voltage regulation and puts your system at risk.

A proper RV solar panel installation always includes a solar charge controller between the panel and the battery. This protects your electrical system from overcharging and extends battery life. If you’re mounting solar panels on RV roofs or upgrading your setup, skipping the controller isn’t recommended.

So, while plug-and-play might work in a pinch, a full installation with proper wiring, fusing, and regulation is the smarter long-term move—especially if you’re serious about going off-grid.

By the way, if you want to install an inverter for your home or factory, you can take a look at solar inverters from Afore, a well-known Hersteller von Solarwechselrichtern. Afore offers a wide range of reliable, high-performance solar inverters for mobile and off-grid applications.

Maintenance and Monitoring

Mounting solar panels on RV isn’t a set-it-and-forget-it deal.

• Clean the panels monthly (or more if dusty)
• Check connections and tighten screws
• Monitor battery health with a shunt monitor

Your system will thank you with longer life and better performance.

FAQs

How to attach solar panel to RV?

Most RV owners choose to install a bracket or use a strong adhesive to hold their solar panels in place. Brackets are strong and durable, and provide a steady support for rigid solar panels, making them a really great choice. Adhesives, on the other hand, are especially good for lightweight or bendable solar panels, especially if you don’t want to put holes in the body of your vehicle.

What is the best adhesive for solar panels on a motorhome?

3M VHB tape and Sikaflex 252 are two of the most popular choices. They offer strong, weather-resistant bonds ideal for mounting solar panels on RV roofs without drilling.

Is it better to wire RV solar panels in series or parallel?

It depends on your system goals. Series connection increases the voltage and is better for long cable runs. Parallel keeps the voltage low and allows the system to continue to work even if one panel is shaded. Some RV systems use a mix of both options.

Can I plug a solar panel directly into my RV?

Yes, but only in low-power, temporary setups. For reliable and safe charging, always route your solar panel through a charge controller before connecting to your RV battery.

How do you hook up solar panels to charge an RV battery?

Connect the solar panel to a charge controller, then from the controller to the battery. This setup protects your battery and ensures efficient charging. Never connect panels directly to the battery without regulation.

What to stick solar panels down with?

Use industrial-grade adhesive like 3M VHB tape for flexible or semi-flexible panels. Clean the surface thoroughly and apply pressure evenly. For added strength, some RVers use a combination of adhesive and brackets.

What is the most efficient way to connect solar panels?

The most efficient setup depends on your specific system. Many RVers prefer series-parallel wiring to balance voltage and amperage. Using a quality MPPT charge controller also boosts efficiency.

How many solar panels do I need for my RV?

It depends on your energy usage. A weekend camper might be fine with 200–400W, while full-time RVers often need 600–1000W or more. Track your daily power draw and battery bank size to determine your ideal system.

Do the solar panels still work when the RV is parked in the shade?

Only partially. The efficiency of the panels decreases significantly in the shade. If you often camp under trees, consider using portable panels that can be moved into the sun, or build more solar panels to compensate for this.

Can I install RV solar panels myself?

Yes! DIY RV solar panel installation is very common. With the right tools, a little research, and patience, most people can safely handle mounting solar panels on RV rooftops and wiring their systems at home.
